Runtime Data Storage. More...

#include <adbms_afe.h>

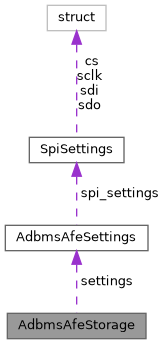

Collaboration diagram for AdbmsAfeStorage:

[legend]

Public Attributes
uint16_t	cell_voltages [ADBMS_AFE_MAX_CELLS]

uint16_t	thermistor_voltages [ADBMS_AFE_MAX_CELL_THERMISTORS]

uint16_t	board_thermistor_voltages [ADBMS_AFE_MAX_BOARD_THERMISTORS]

uint16_t	cell_result_lookup [ADBMS_AFE_MAX_CELLS]

uint16_t	discharge_cell_lookup [ADBMS_AFE_MAX_CELLS]

AdbmsAfeSettings *	settings

AdbmsAfeWriteConfigAPacket	config_a [ADBMS_AFE_MAX_DEVICES]

AdbmsAfeWriteConfigBPacket	config_b [ADBMS_AFE_MAX_DEVICES]

Detailed Description

Runtime Data Storage.

Stores settings, configs, and voltages for all AFE devices

Note

Raw indices mean

Index 0 corresponds to the first cell/thermistor value of the first AFE device.
Index n * max_x_per_device corresponds to the first value of the (n+1)th AFE device.
Each AFE's data (voltages, lookups, etc.) is stored contiguously before the next AFE's data.

Member Data Documentation

uint16_t board_thermistor_voltages[ADBMS_AFE_MAX_BOARD_THERMISTORS]

Stores thermistor voltage for all board temperature

uint16_t cell_result_lookup[ADBMS_AFE_MAX_CELLS]

Map raw cell indices read from AFE to cell_voltages

uint16_t cell_voltages[ADBMS_AFE_MAX_CELLS]

Stores cell voltages for all devices

AdbmsAfeWriteConfigAPacket config_a[ADBMS_AFE_MAX_DEVICES]

Stores the Configuration of each device in the CFGRA register

AdbmsAfeWriteConfigBPacket config_b[ADBMS_AFE_MAX_DEVICES]

Stores the Configuration of each device in the CFGRB register

uint16_t discharge_cell_lookup[ADBMS_AFE_MAX_CELLS]

Map indicies of cell_voltages to raw cell indices

Stores settings for AFE devices, set by the user

uint16_t thermistor_voltages[ADBMS_AFE_MAX_CELL_THERMISTORS]

Stores thermistor voltages for all devices
